Manufacturer
 | PAVATEX by Soprema D-88299 Leutkirch Germany |
| Product groups: | Wood-fibre insulation boards | ||
| Area of application (insulating materials): |
Lightweight element
Rainscreen
Lightweight element
Soundproofing
Under board panelling
On supporting structure (from outside)
under supporting structure (inside)
Between supporting structure
Above the base plate
Underneath the base plate
Above the cellar ceiling
Underneath the cellar ceiling
Top SC, accessible
Top SC, between supporting structure | ||

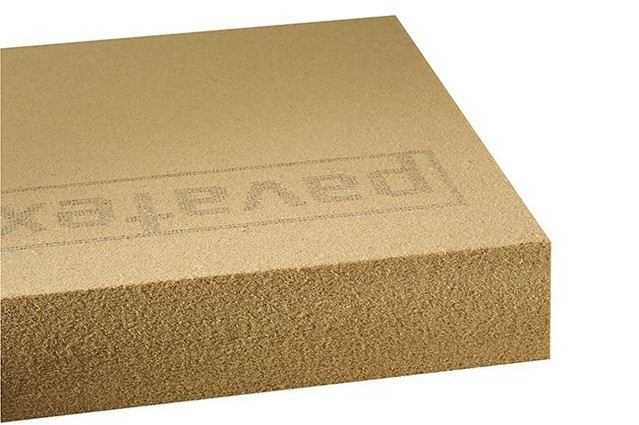

| Product photos: |
| ||
| Renewable raw materials: | 95,5 | w% | |
| Country of origin of raw materials (text): | not specified | ||
| Link to product on the manufacturer's homepage: | http://www.pavatex.de/produkte/dach-holzfaser/pavatherm/ | ||
| Format l x w: | 1.100 mm x 600 mm | ||
| thickness: | 4 cm 6 cm 8 cm 10 cm 12 cm 14 cm 16 cm | ||
| λD thermal conductivity nominal value: | 0,038 | W/(m·K) | |
| λacc. to DIN 4108-4: | 0,04 | W/(m·K) | |
| ρ density: | 110 | kg/m³ | |
| c specific heat capacity: | 2100 | J/(kg·K) | |
| μ Vapour diffusion resistance factor: | 3 |
| Production phase (A1 - A3 according to EN 15804): |  Energy efficient production process Environmental protection and clean production Climate Protection via reduced CO2 emissionsThe compliance with the natureplus guideline values certifies an energy efficient, environmental and climate friendly production process above average. | ||
TVOC ≤ 300 μg/m³ TSVOC ≤ 100 µg/m³ Formaldehyde ≤ 36 µg/m³ Odour assessment ≤ 3 Pesticide ≤ 1 mg/kg AOX / EOX ≤ 1 mg/kg Biocide ≤ 1 mg/kg| A1-A3 Product stage EI disposal indicator |
reference | Unit |
| Core environmental impact indicators | ||
| GWP-fossil Global warming potential - fossil | 0,879 | kg CO2 Äq./kg |
| GWP-biogenic Global warming potential - biogenic | -1,62 | kg CO2 Äq./kg |
| GWP-total Global warming potential - total | -0,741 | kg CO2 Äq./kg |
| ODP Depletion potential of the stratospheric ozone layer | 6,73·10-8 | kg CFC-11 eq./kg |
| AP Acidification potential | 0,00341 | kg SO2 Äq./kg |
| EP Eutrophication potential | 0,00157 | kg PO43- eq./kg |
| POCP Photochemical Ozone Creation Potential | 0,000483 | kg C2H4 eq./kg |
| Indicators describing resource use | ||
| PERE Primary energy renewable - energy resources | 1,85 | MJ/kg |
| PERM Primary energy renewable - material | 16,4 | MJ/kg |
| PERT Primary energy renewable - total | 18,2 | MJ/kg |
| PENRE Primary energy non-renewable - energy resources | 13,2 | MJ/kg |
| PENRM Primary energy non-renewable - material | 1,55 | MJ/kg |
| PENRT Primary energy non-renewable - total | 14,8 | MJ/kg |
 certificate valid until Mar 31, 2024 Certificate no.: 0104-1402-004-5 Status: zertifiziert bis zum Abschluss der laufenden Prüfung Issuance Guidelines: 0104 |
| Safety data sheet: | not available | ||
| Listed since: | Feb 16, 2022 | ||
| baubook product index: | 2041 aa | ||
|
