| Product groups: | Ceiling elements made of wood, Cross laminated timber, Full-surface acustic ceiling elements | ||

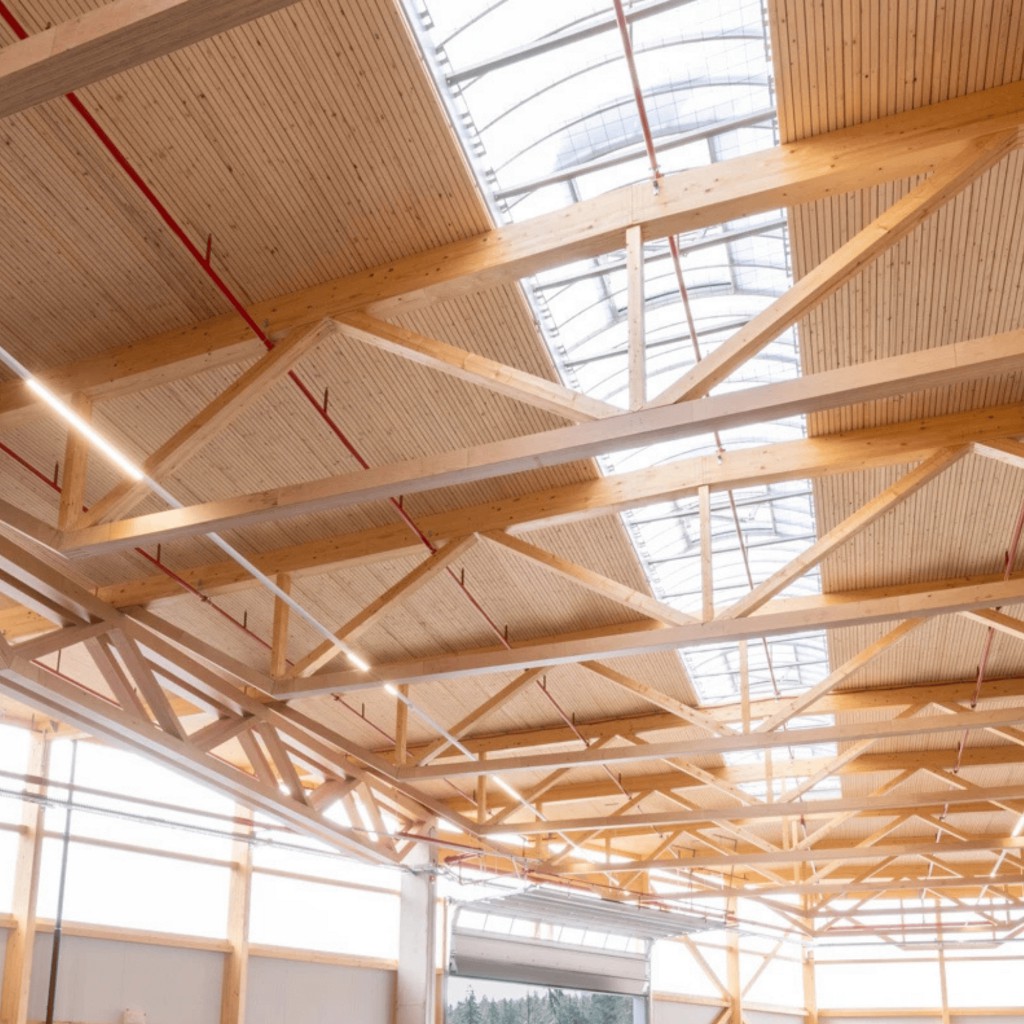

| Description of the area of application: | The material-efficient LIGNO® Acoustic classic ribbed cross-laminated timber elements are primarily used in commercial buildings (such as halls) for load-bearing, sound-absorbing roof structures—ideal when both structural function and acoustic performance need to be achieved in a single component. This eliminates the need for suspended ceilings. The product can be used in solid timber, timber frame, or skeleton constructions, as well as on timber or steel trusses. The underside features a profiled surface with factory-integrated acoustic absorbers. | ||

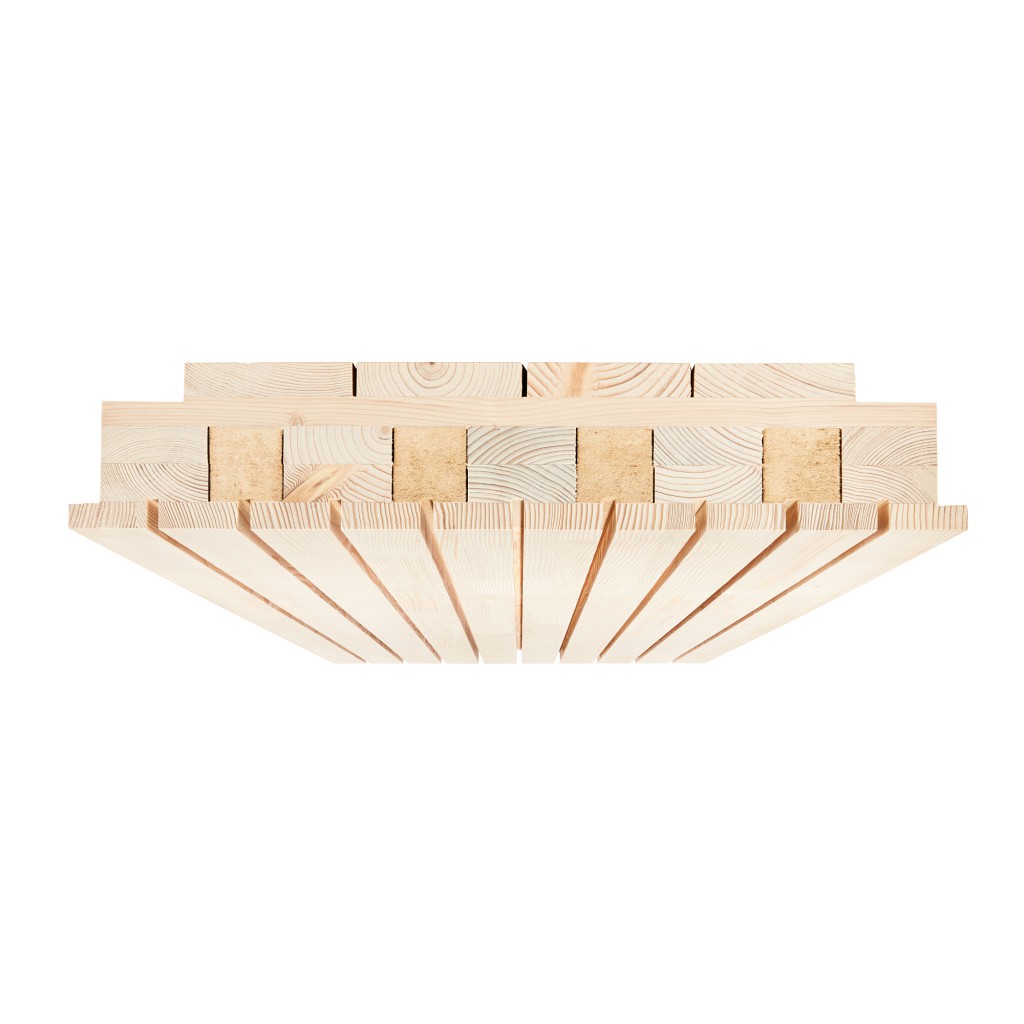

| Product description of manufacturer: | The ribbed elements feature five webs at lower heights; for greater heights, the cross-section is designed as a cross-laminated timber box element with three load-bearing webs. On the underside, five timber slats form the factory-finished visible surface of the component. The top side is closed with a cover plate, forming the structural body of the element. Longitudinal channels between the webs can accommodate installations and insulation. At the lateral joint between elements, an additional absorber strip is inserted. The gap is bridged with a joint batten, which also connects the elements into a structural diaphragm. | ||

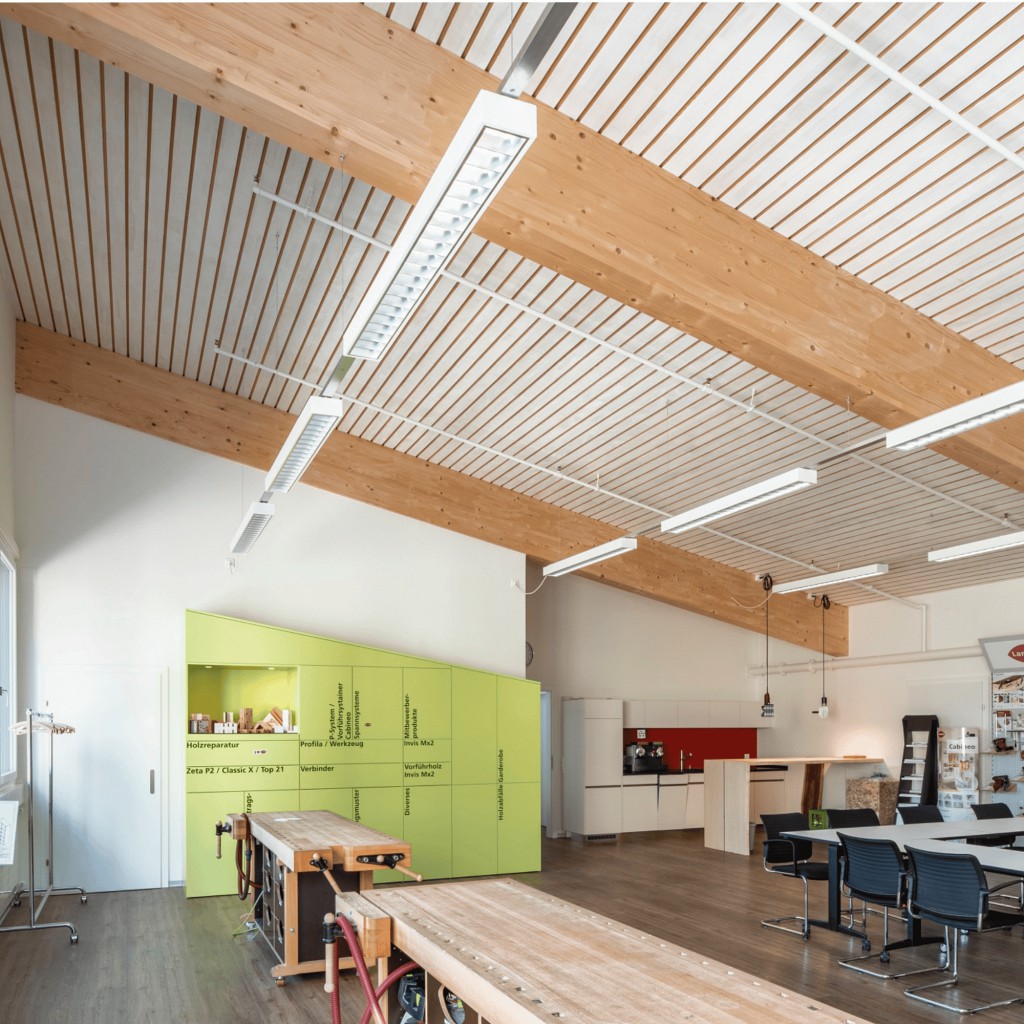

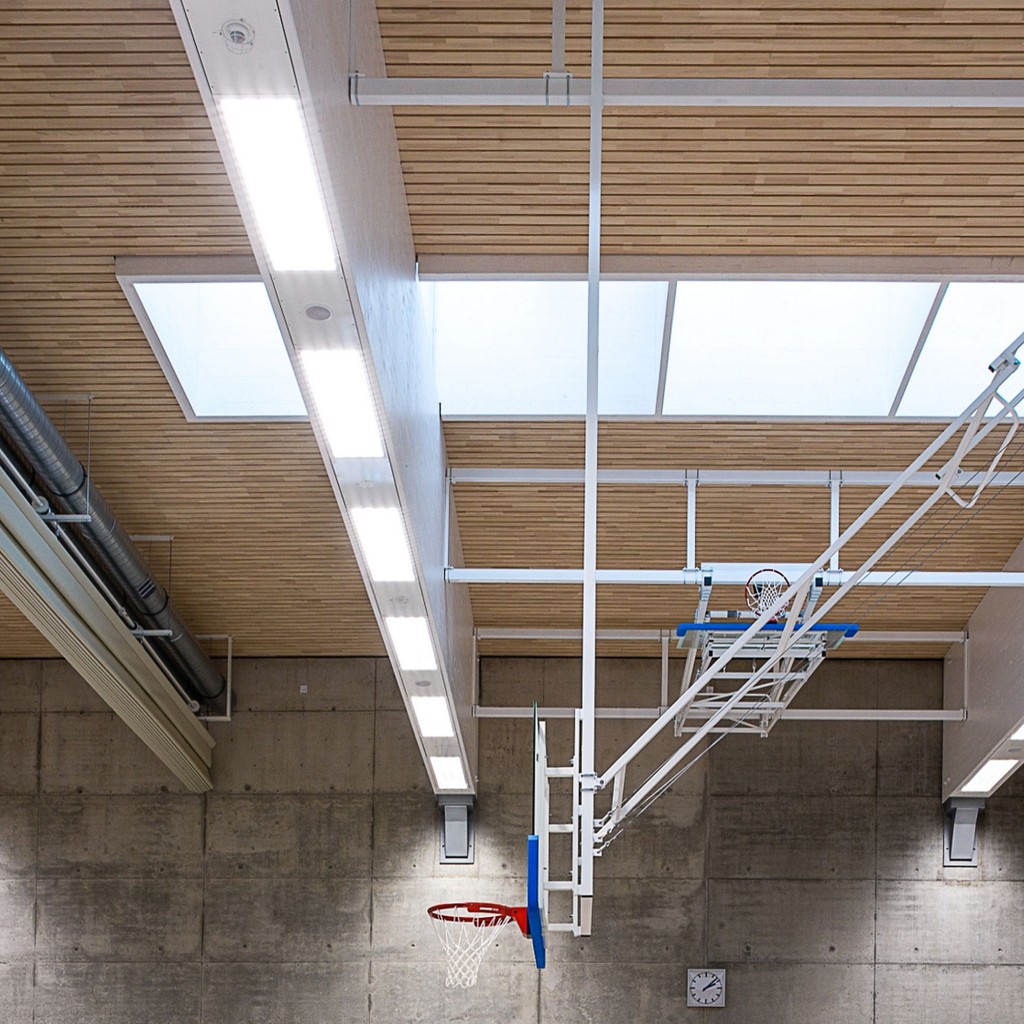

| Product photos: |
| ||
| Ingredients according to natureplus declaration rules: | solid wood solid wood board wood fibre board glue | ||
| Designation of origin of the main ingredients: | PEFC-certified softwood (spruce, fir) from the Black Forest and southern Germany. Solid wood panels preferably from regional or European sources, all from controlled supply chains. Wood fiberboards made from residual and fresh wood supplied by local manufacturers. Low-emission PU adhesives are used in accordance with natureplus specifications. | ||
| Link to product on the manufacturer's homepage: | https://lignotrend.com/produkte/konstruktion/dachbauteile | ||
| Format l x w: | 15.000 mm x 625 mm 18.000 mm x 625 mm | ||
| thickness: | 9 cm 11 cm 13 cm 15 cm 17 cm 19 cm 21 cm 23 cm 25 cm 27 cm 29 cm 31 cm 33 cm 35 cm 37 cm 39 cm 41 cm 43 cm 45 cm | ||
| Dimensions (description): | LIGNO® Akustik klassik sind in verschiedenen Standardmaßen verfügbar: Länge: bis zu 15.000 mm für Dicke < 190mm Lange: bis zu 18.000 mm für Dicke > 190mm Breite: bis zu 625 mm Dicke: je nach Aufbau zwischen 9 cm und 45 cm Diese Maße ermöglichen eine flexible Anwendung an Flachdach als auch im Steildach für großflächige und fugenreduzierte Gestaltungslösungen. | ||

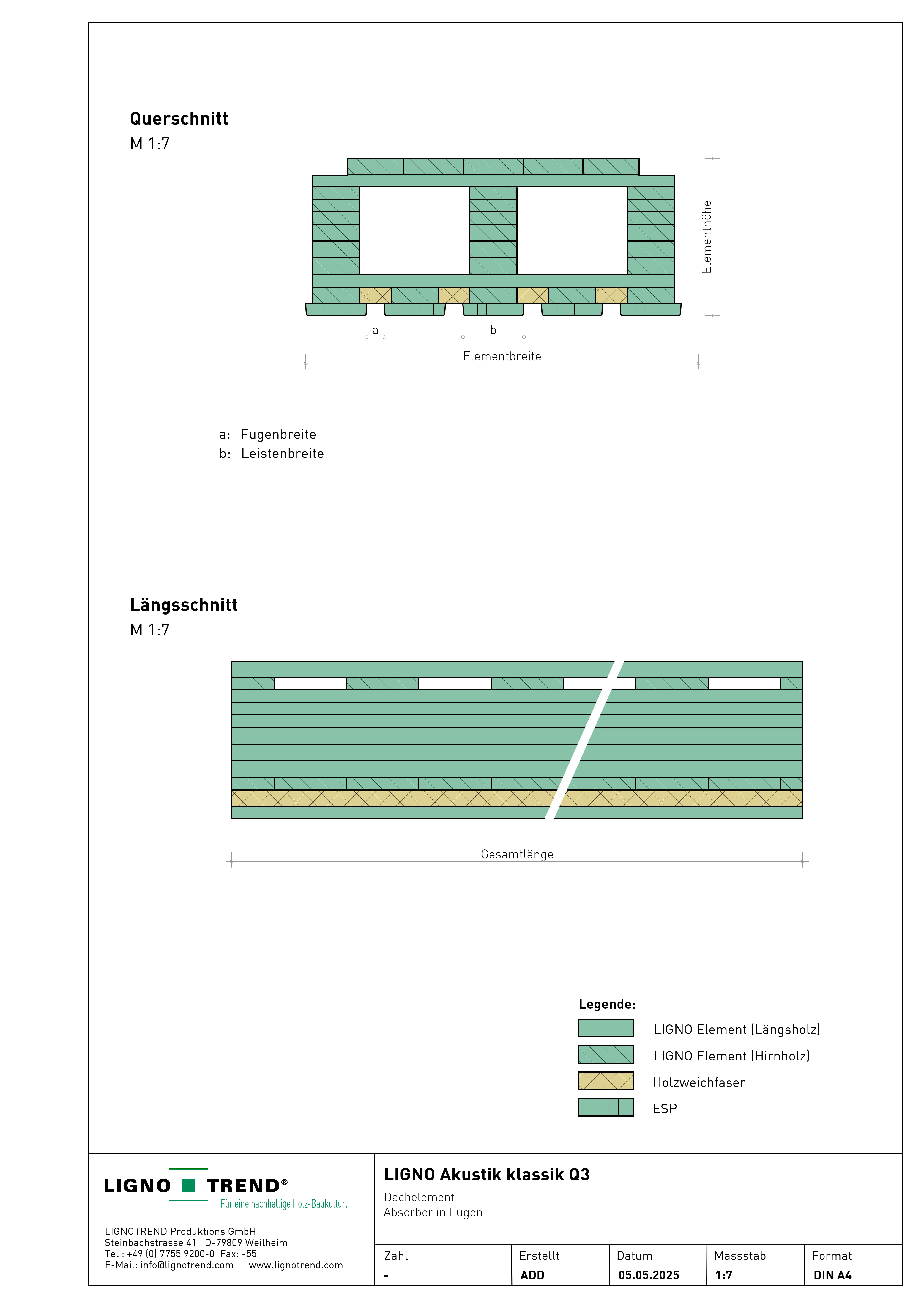

| Construction drawing with dimensions: | LIGNO_Akustik_klassik_Q3.jpg (688 KB) | ||
| λr thermal conductivity rated valueAUT: | not specified | W/(m·K) | |
| λacc. to DIN 4108-4: | 0,12 | W/(m·K) | |
| ρ density: | 385 | kg/m³ | |
| c specific heat capacity: | 1600 | J/(kg·K) |
| Flammability class: | not specified | ||
| Production phase (A1 - A3 according to EN 15804): |  Energy efficient production process Environmental protection and clean production Climate Protection via reduced CO2 emissions | ||
Pesticide ≤ 1 mg/kg Biocide ≤ 1 mg/kg AOX / EOX ≤ 1 mg/kg TVOC ≤ 1000 μg/m³ TSVOC ≤ 100 µg/m³ Formaldehyde ≤ 36 µg/m³ Odour assessment ≤ 3 certificate valid until June 30, 2029 Certificate no.: 0211-0606-014-1 Status: zertifiziert Issuance Guidelines: 0211 |
 PDF (339 KB) valid until June 2027 |
| Technical data sheet: | issued on Apr 3, 2024 | ||
| General Technical Approval (Germany): | valid until Feb 11, 2030 Registration number: Z-9.1-555 | ||
| declared since: | Jan 15, 2015 | ||
| Amended: | June 6, 2025 | ||
| baubook product index: | 9392 ae | ||
|
