Manufacturer
| Product groups: | Acustic wall elements, Ceiling elements made of wood, Cross laminated timber, Directly fastened acustic ceiling elements, Free-hanging acustic ceiling elements , Full-surface acustic ceiling elements | ||
| Description of the area of application: | The genuine wood acoustic panels LIGNO® Acoustic are used for sound-absorbing cladding in commercial buildings (e.g. offices, swimming halls, sports halls, nurseries) as well as in residential construction. - Suspended ceilings - for example, beneath timber or concrete structures. - Wall cladding - including installation in front of masonry or concrete. - Acoustic canopies - suspended freely in the room - Grid ceilings – as custom-cut panels for insertion into standard ceiling grid systems. Möchtest du eine eher technische oder werblichere Tonalität für den gesamten Text? | ||
| Product description of manufacturer: | The cross-laminated timber acoustic panels consist of three layers: On the visible side, gaps in the top layer create a slatted appearance; when properly constructed, the cladding is resistant to ball impact. The middle layer (cross layer) is oriented at a right angle to the top layer and ensures high dimensional stability, even though solid wood is used. The rear layer consists of at least four longitudinally aligned slats. Acoustic absorbers are integrated into the cross layer. Thanks to the recessed absorber material, the panel is renovation-friendly—its sound absorption performance remains unaffected by painting or sanding. Various wood species and regular or irregular slat patterns are available for the visible layer. | ||

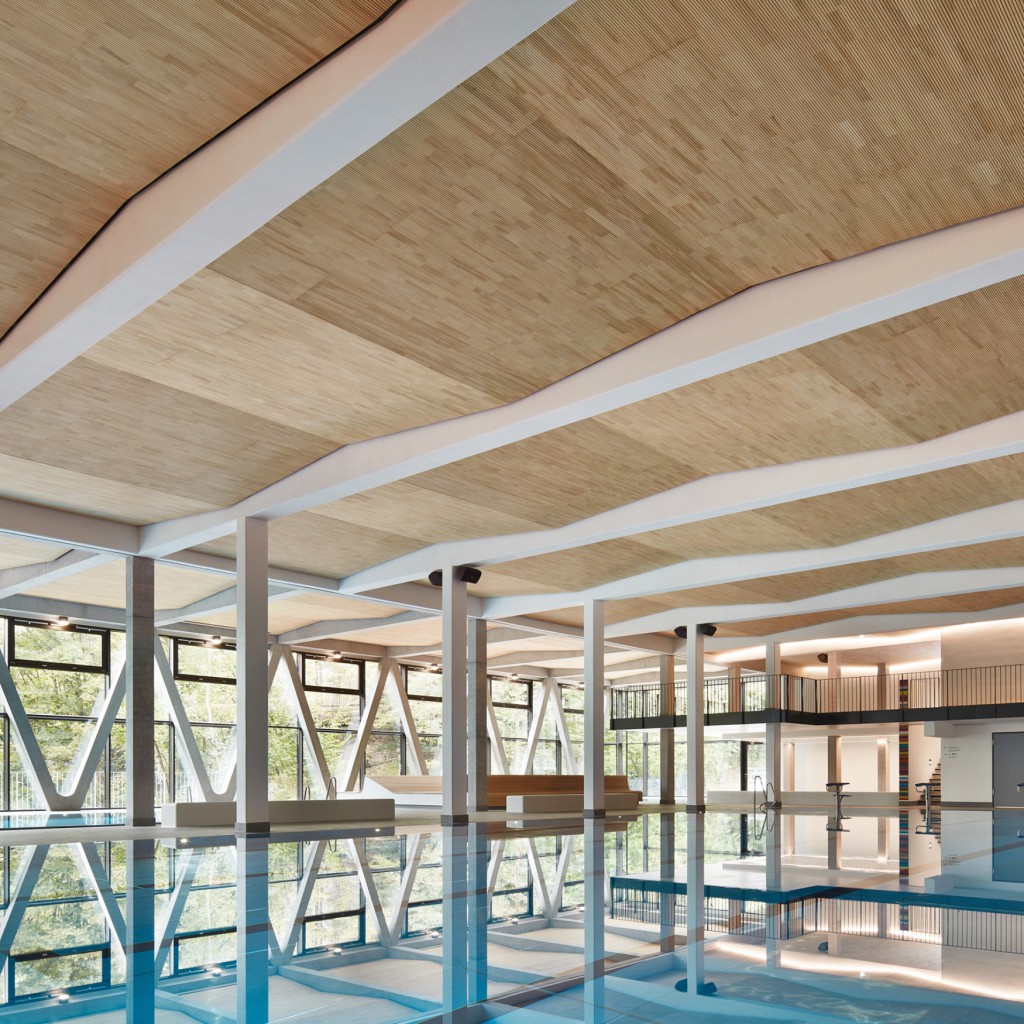

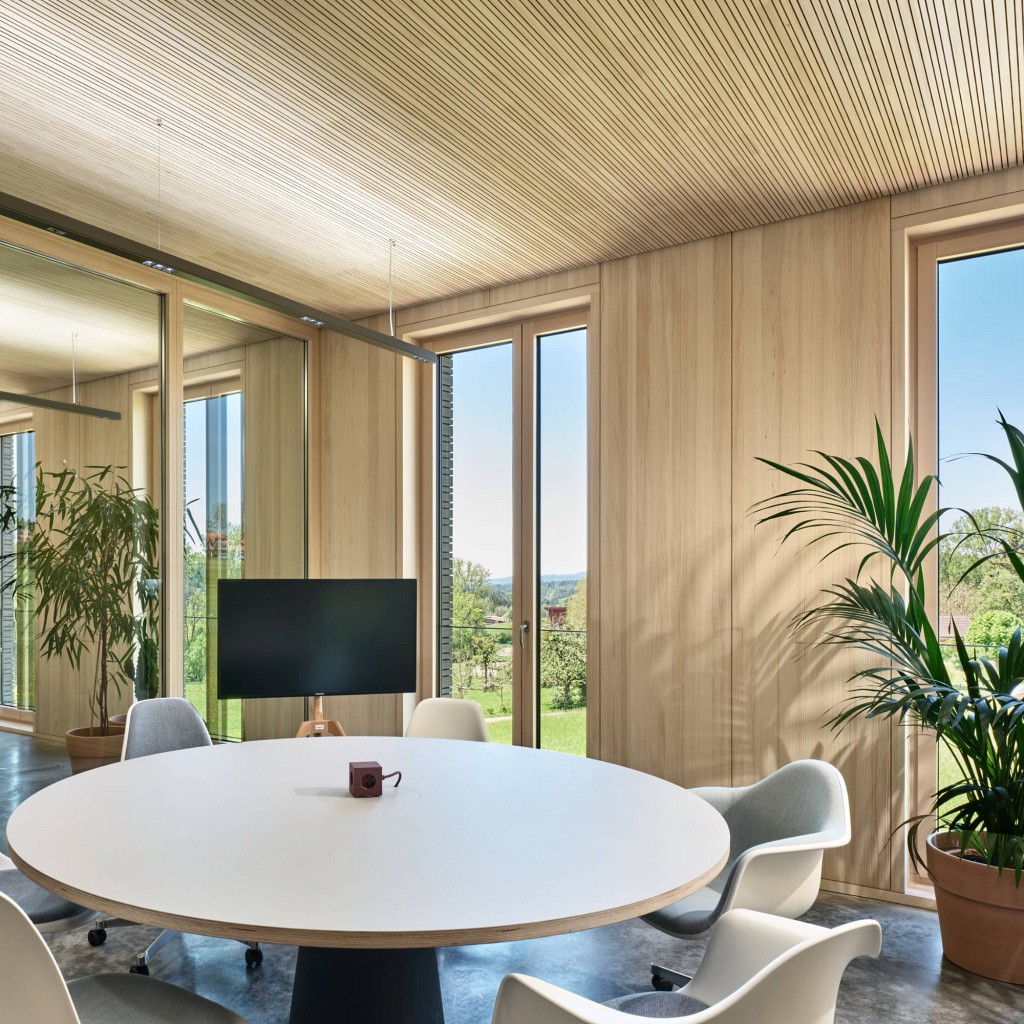

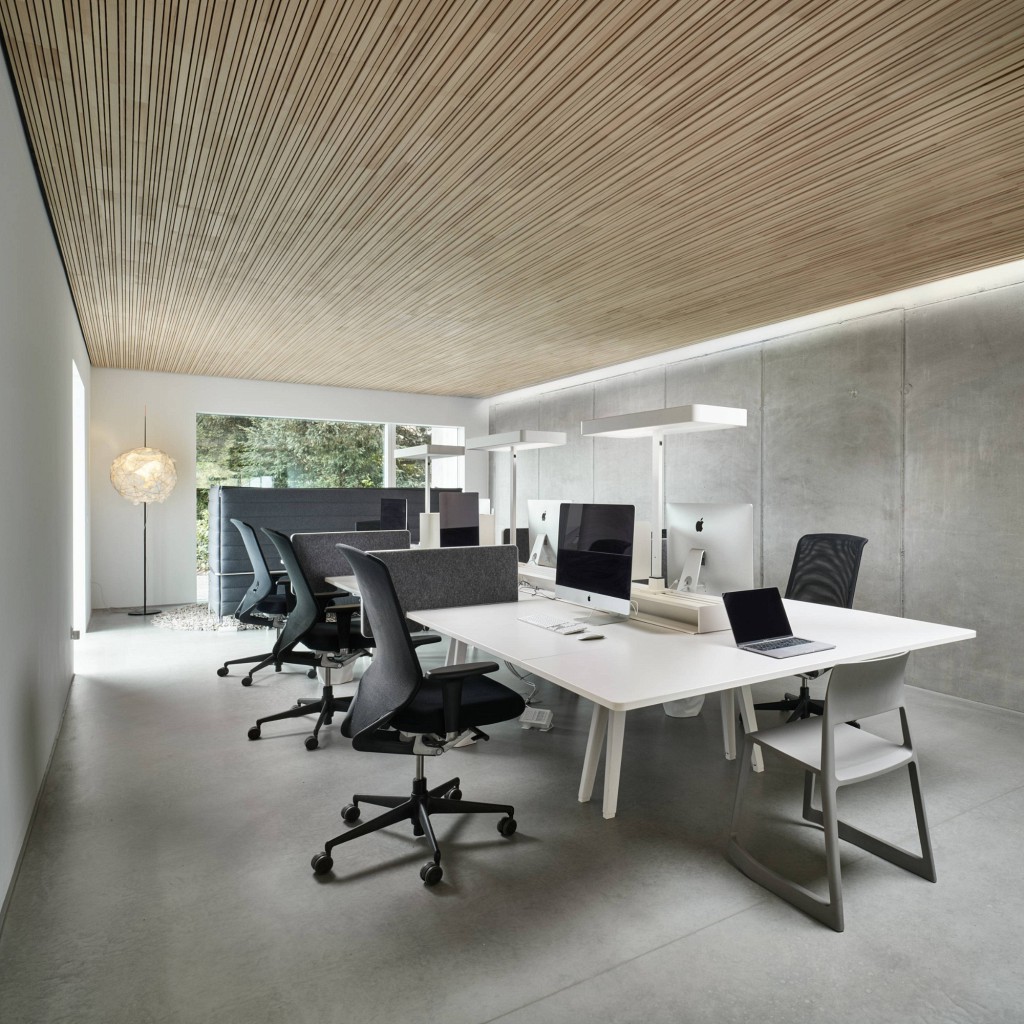

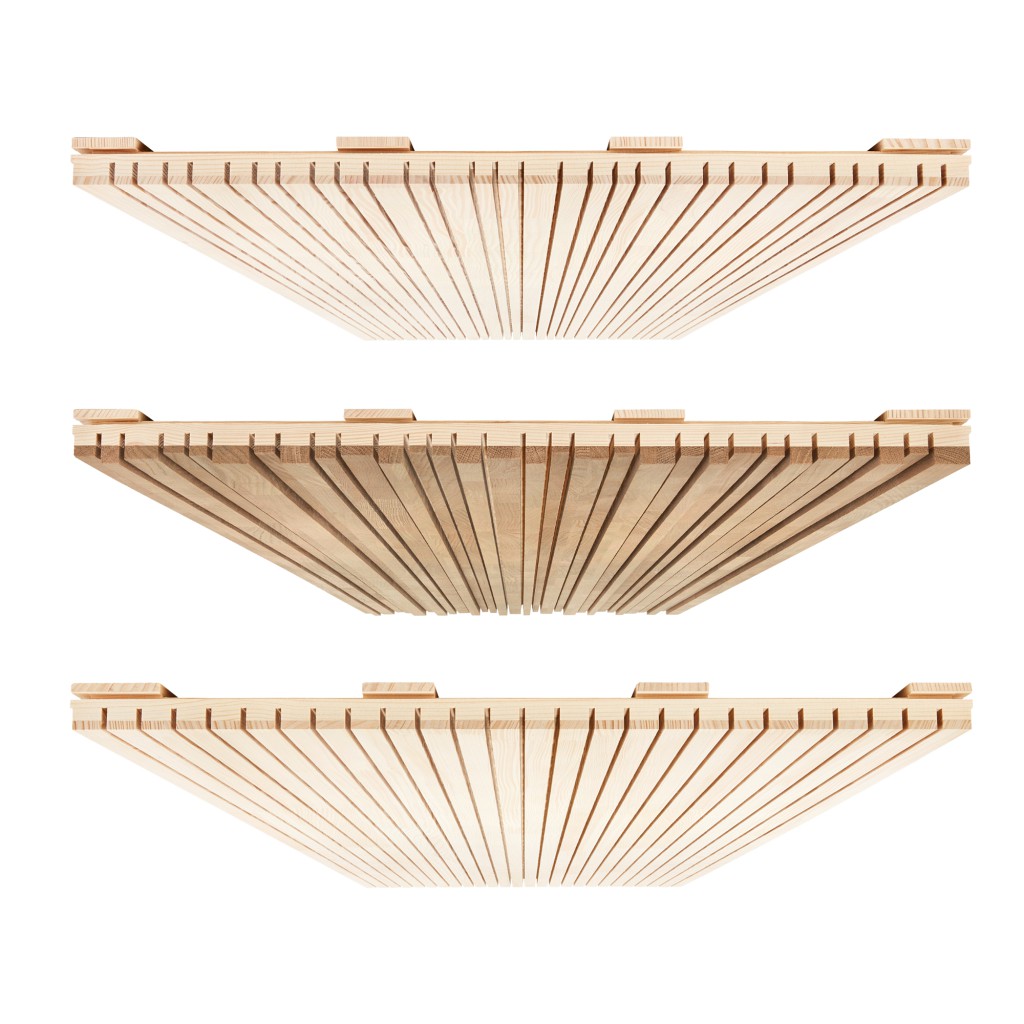

| Product photos: |
| ||
| Ingredients according to natureplus declaration rules: | solid wood solid wood board wood fibre board glue | ||
| Designation of origin of the main ingredients: | PEFC-certified softwood (spruce, fir) sourced from the Black Forest and southern Germany. Solid wood panels preferably from regional or European, controlled sources. Wood fiberboards made from residual and fresh wood supplied by local manufacturers. Low-emission PU adhesives and PVAc glues are used in accordance with natureplus requirements. | ||
| Link to product on the manufacturer's homepage: | https://lignotrend.com/produkte/akustikpaneele | ||
| Format l x w: | 2.940 mm x 625 mm | ||
| thickness: | 2,5 cm 3,3 cm 3,9 cm | ||
| Dimensions (description): | LIGNO® acoustic panels are available in the following standard dimensions: Length: up to 2,940 mm Width: up to 625 mm Thickness: depending on the build-up, between 25 mm and 40 mm These dimensions allow for flexible use on walls and ceilings – ideal for large surfaces and reduced joint patterns. | ||

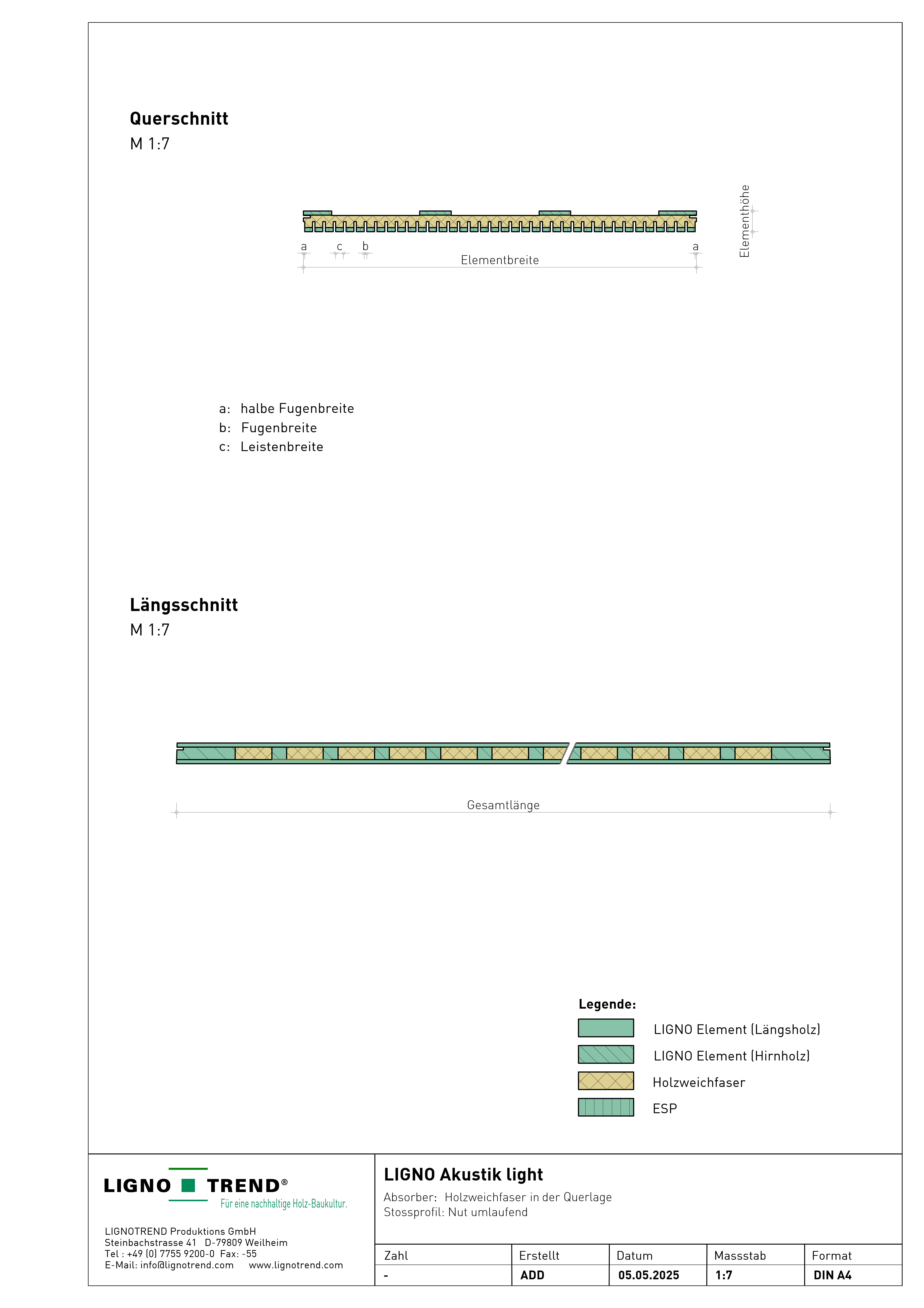

| Construction drawing with dimensions: | LIGNO_Akustik_light.jpg (563 KB) | ||
| λr thermal conductivity rated valueAUT: | not specified | W/(m·K) | |
| λacc. to DIN 4108-4: | 0,12 | W/(m·K) | |
| ρ density: | 385 | kg/m³ | |
| c specific heat capacity: | not specified | J/(kg·K) |
| Flammability class: | B | ||
| Smoke emission: | s1 = No/minimal smoke emission | ||
| Flaming droplets: | d0 = No falling / dripping | ||
| Compliance with minimum EN requirements: | The product meets the requirements of EN 13501-1 with a classification ranging from D-s2, d0 up to B-s1, d0, depending on the product version. It exhibits medium to low smoke production (s2–s1) and no flaming droplets (d0). | ||
| Production phase (A1 - A3 according to EN 15804): |  Energy efficient production process Environmental protection and clean production Climate Protection via reduced CO2 emissions | ||
Pesticide ≤ 1 mg/kg Biocide ≤ 1 mg/kg AOX / EOX ≤ 1 mg/kg TVOC ≤ 1000 μg/m³ TSVOC ≤ 100 µg/m³ Formaldehyde ≤ 36 µg/m³ Odour assessment ≤ 3 certificate valid until June 30, 2029 Certificate no.: 0211-0606-014-1 Status: zertifiziert Issuance Guidelines: 0211 |
 PDF (339 KB) valid until June 2027 |
| Technical data sheet: | issued on Apr 30, 2024 | ||
| European Technical Assessment (ETA): | issued on June 25, 2021 issued by: ETA-Danmark A/S | ||
| CE Certificate of conformity: | issued by: Karlsruher Institut für Technologie (KIT) | ||
| CE Declaration of Performance: | LIGNO_Acoustic_panels_DoP_DE_V02.pdf (544 KB) issued on Sept 8, 2022 | ||
| declared since: | Jan 15, 2015 | ||
| Amended: | June 6, 2025 | ||
| baubook product index: | 9392 ah | ||
|
