GUTEX Holzfaserplattenwerk D-79761 Waldshut-Tiengen Germany |
Product groups: | Wood-fibre insulation boards | ||
Area of application (insulating materials): |
Rainscreen
On supporting structure (from outside)
under supporting structure (inside)
| ||

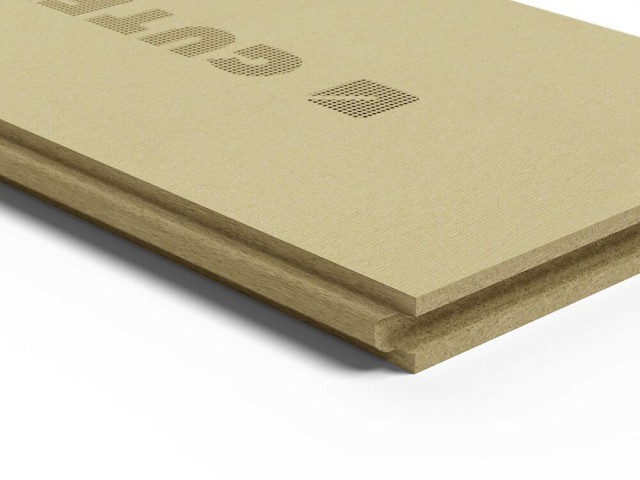

Product photos: | |||
Renewable raw materials: | 95 | w% | |
Ingredients according to natureplus declaration rules: | Woodchips from fir wood and spruce wood PUR resin paraffin | ||
Country of origin of raw materials (text): | not specified | ||
Link to product on the manufacturer's homepage: | https://gutex.de/sortiment/produkte/produkt/gutex-multitherm/ |
Format l x w: | 1.760 mm x 600 mm 3.000 mm x 1.250 mm | ||
thickness: | 4 cm 6 cm 8 cm 10 cm 12 cm 14 cm 16 cm 18 cm 20 cm |
λr thermal conductivity rated valueAUT: | 0,044 | W/(m·K) | |
λD thermal conductivity nominal value: | 0,04 | W/(m·K) | |
λacc. to DIN 4108-4: | 0,042 | W/(m·K) | |
ρ density: | 140 | kg/m³ | |
c specific heat capacity: | 2100 | J/(kg·K) | |
μ Vapour diffusion resistance factor: | 4 |
Production phase (A1 - A3 according to EN 15804): | Energy efficient production process Environmental protection and clean production Climate Protection via reduced CO2 emissions The compliance with the natureplus guideline values certifies an energy efficient, environmental and climate friendly production process above average. |
A1-A3 Product stage EI disposal indicator |
reference | Unit |
Core environmental impact indicators | ||
GWP-fossil Global warming potential - fossil | 0,879 | kg CO2 Äq./kg |
GWP-biogenic Global warming potential - biogenic | -1,62 | kg CO2 Äq./kg |
GWP-total Global warming potential - total | -0,741 | kg CO2 Äq./kg |
ODP Depletion potential of the stratospheric ozone layer | 6,73·10-8 | kg CFC-11 eq./kg |
AP Acidification potential | 0,00341 | kg SO2 Äq./kg |
EP Eutrophication potential | 0,00157 | kg PO43- eq./kg |
POCP Photochemical Ozone Creation Potential | 0,000483 | kg C2H4 eq./kg |
Indicators describing resource use | ||
PERE Primary energy renewable - energy resources | 1,85 | MJ/kg |
PERM Primary energy renewable - material | 16,4 | MJ/kg |
PERT Primary energy renewable - total | 18,2 | MJ/kg |
PENRE Primary energy non-renewable - energy resources | 13,2 | MJ/kg |
PENRM Primary energy non-renewable - material | 1,55 | MJ/kg |
PENRT Primary energy non-renewable - total | 14,8 | MJ/kg |
Environmental Product Declaration (EPD) - other: | EPD (1,85 MB) valid until Oct 8, 2025 |
certificate valid until Apr 30, 2024 Certificate no.: 0104-0604-012-2 Status: zertifiziert Issuance Guidelines: 0104 |
PDF (181 KB) valid until February 2028 |
Technical data sheet: | issued on May 4, 2022 | ||
Safety data sheet: | not available | ||
CE Declaration of Performance: | issued on July 24, 2020 |
Listed since: | Jan 15, 2015 | ||
Amended: | Feb 21, 2023 | ||
baubook product index: | 1524 an |
|
