Manufacturer
| Product groups: | Compound product (opaque), Wood-chip wall elements | ||

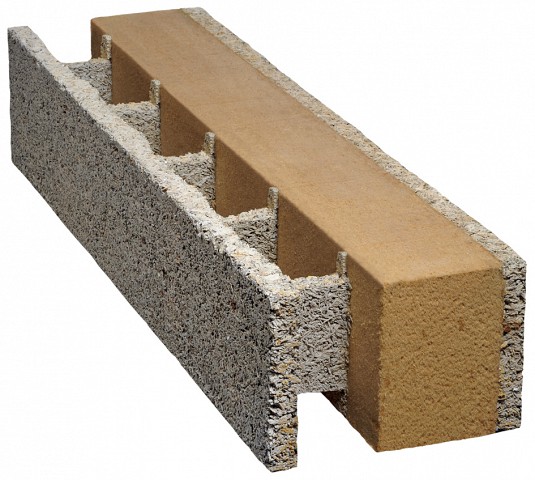

| Product photos: |
| ||
| Ingredients according to natureplus declaration rules: | Fichtenholzspäne Portlandzement Hackschnitzel Bindemittel PMDI Emulsion Polyol | ||
| no. | type | layer (from inside to outside) | d cm |
| 1 |  |
ISO SPAN Holzmantelbetonstein Dichte 475 kg/m³ (Steine mit Dämmung) | 4,00 |
| 2 |  |
inhomogeneous (parts horizontal) | 20,00 |
| 22,4 cm (89,4%) best wood MULTITHERM 110 | 20,00 | ||
| 2,6 cm (10,6%) ISO SPAN Holzmantelbetonstein Dichte 475 kg/m³ (Steine mit Dämmung) | 20,00 | ||
| 3 | |
inhomogeneous (parts horizontal) | 15,00 |
| 21,9 cm (87,4%) Normal concrete without reinforcement (2200 kg/m³) | 15,00 | ||
| 3,2 cm (12,6%) ISO SPAN Holzmantelbetonstein Dichte 475 kg/m³ (Steine mit Dämmung) | 15,00 | ||
| 4 | |
ISO SPAN Holzmantelbetonstein Dichte 475 kg/m³ (Steine mit Dämmung) | 4,00 |
| additional materials (not relevant for the U-value): (quantity per m² building element) | |||
| 0,3 kg | Reinforcing steel | ||
| building element | 43,00 | ||
| thickness: | 43 cm | ||
| c specific heat capacity: | not specified | J/(kg·K) |
| Flammability class: | not specified | ||
| Production phase (A1 - A3 according to EN 15804): |  Energy efficient production process Environmental protection and clean production Climate Protection via reduced CO2 emissions | ||
| A1-A3 Product stage indicator |
Wert | Unit |
| Core environmental impact indicators | ||
| GWP-fossil Global warming potential - fossil | 0,169 | kg CO2 Äq./kg |
| GWP-biogenic Global warming potential - biogenic | -0,233 | kg CO2 Äq./kg |
| GWP-total Global warming potential - total | -0,0640 | kg CO2 Äq./kg |
| AP Acidification potential | 0,000371 | kg SO2 Äq./kg |
| Indicators describing resource use | ||
| PENRE Primary energy non-renewable - energy resources | 1,59 | MJ/kg |
| PENRM Primary energy non-renewable - material | 0,0950 | MJ/kg |
| PENRT Primary energy non-renewable - total | 1,69 | MJ/kg |
| A1-A3 Product stage indicator |
Wert | Unit |
| Core environmental impact indicators | ||
| GWP-fossil Global warming potential - fossil | 0,159 | kg CO2 Äq./kg |
| GWP-biogenic Global warming potential - biogenic | -0,232 | kg CO2 Äq./kg |
| GWP-luluc Global warming potential - land use and land use change | 0,000205 | kg CO2 eq./kg |
| GWP-total Global warming potential - total | -0,0726 | kg CO2 eq./kg |
| ODP Depletion potential of the stratospheric ozone layer | 8,29·10-9 | kg CFC-11 eq./kg |
| AP Acidifcation potential - Accumulated Exceedance | 0,000538 | mol H+ eq./kg |
| EP-freshwater Eutrophication potential - freshwater | 5,31·10-5 | kg P eq./kg |
| EP-marine Eutrophication potential - marine | 0,000159 | kg N eq./kg |
| EP-terrestrial Eutrophication potential - terrestrial | 0,00164 | mol N eq./kg |
| POCP Photochemical Ozone Creation Potential | 0,000489 | kg NMVOC eq./kg |
| ADPE Abiotic depletion potential for non fossil resources | 6,64·10-7 | kg Sb eq./kg |
| ADPF Abiotic depletion potential for fossil resources | 1,37 | MJ/kg |
| WDP Water (user) deprivation potential | 0,0474 | m³ world eq. deprived/kg |
| Indicators describing resource use | ||
| PERE Primary energy renewable - energy resources | 0,246 | MJ/kg |
| PERM Primary energy renewable - material | 2,40 | MJ/kg |
| PERT Primary energy renewable - total | 2,65 | MJ/kg |
| PENRE Primary energy non-renewable - energy resources | 1,30 | MJ/kg |
| PENRM Primary energy non-renewable - material | 0,0708 | MJ/kg |
| PENRT Primary energy non-renewable - total | 1,37 | MJ/kg |
| SM Use of secondary material | 0,0265 | kg/kg |
| RSF Use of renewable secondary fuels | 0,00 | MJ/kg |
| NRSF Use of non renewable secondary fuels | 0,00 | MJ/kg |
| Environmental information describing waste categories | ||
| HWD Hazardous waste disposed | 3,47·10-6 | kg/kg |
| NHWD Non hazardous waste dispose | 0,0364 | kg/kg |
| RWD Radioactive waste disposed | 8,85·10-6 | kg/kg |
| Environmental information describing output flows | ||
| CRU Components for re-use | 0,00 | kg/kg |
| MFR Materials for recycling | 0,00 | kg/kg |
| MER Materials for energy recovery | 0,00 | kg/kg |
| EEE Exported electrical energy | 0,00 | MJ/kg |
| EET Exported thermal energy | 0,00 | MJ/kg |
| Additional environmental impact indicators | ||
| PM Potential incidence of disease due to PM emissions | 5,00·10-9 | Disease incidence/kg |
| IRP Potential Human exposure efficiency relative to U235 | 0,0109 | kgBq U235 eq./kg |
| ETP-fw Potential Comparative Toxic Unit for ecosystems | 2,01 | CTUe/kg |
| HTP-c Potential Comparative Toxic Unit for humans - cancer effects | 2,56·10-10 | CTUh/kg |
| HTP-nc Potential Comparative Toxic Unit for humans - non-cancer effects | 3,26·10-9 | CTUh/kg |
| SQP Potential Soil quality index | 6,15 | 1/kg |
| Environmental Product Declaration (EPD) - ecoinvent A2 (Austrian-compliant): | valid until June 13, 2028 | ||
| A1-A3 Product stage indicator |
Wert | Unit |
| Core environmental impact indicators | ||
| GWP-fossil Global warming potential - fossil | 0,312 | kg CO2 Äq./kg |
| GWP-biogenic Global warming potential - biogenic | -0,847 | kg CO2 Äq./kg |
| GWP-luluc Global warming potential - land use and land use change | 0,000624 | kg CO2 eq./kg |
| GWP-total Global warming potential - total | -0,534 | kg CO2 eq./kg |
| ODP Depletion potential of the stratospheric ozone layer | 8,10·10-9 | kg CFC-11 eq./kg |
| AP Acidifcation potential - Accumulated Exceedance | 0,000667 | mol H+ eq./kg |
| EP-freshwater Eutrophication potential - freshwater | 4,04·10-5 | kg P eq./kg |
| EP-marine Eutrophication potential - marine | 0,000240 | kg N eq./kg |
| EP-terrestrial Eutrophication potential - terrestrial | 0,00266 | mol N eq./kg |
| POCP Photochemical Ozone Creation Potential | 0,000739 | kg NMVOC eq./kg |
| ADPE Abiotic depletion potential for non fossil resources | 8,19·10-7 | kg Sb eq./kg |
| ADPF Abiotic depletion potential for fossil resources | 3,21 | MJ/kg |
| WDP Water (user) deprivation potential | 0,0410 | m³ world eq. deprived/kg |
| Indicators describing resource use | ||
| PERE Primary energy renewable - energy resources | 0,378 | MJ/kg |
| PERM Primary energy renewable - material | 8,78 | MJ/kg |
| PERT Primary energy renewable - total | 9,16 | MJ/kg |
| PENRE Primary energy non-renewable - energy resources | 3,21 | MJ/kg |
| PENRM Primary energy non-renewable - material | 0,259 | MJ/kg |
| PENRT Primary energy non-renewable - total | 3,47 | MJ/kg |
| SM Use of secondary material | 0,0968 | kg/kg |
| RSF Use of renewable secondary fuels | 0,00 | MJ/kg |
| NRSF Use of non renewable secondary fuels | 0,00 | MJ/kg |
| FW Use of net fresh water | 0,00128 | m³/kg |
| Environmental information describing waste categories | ||
| HWD Hazardous waste disposed | 1,91·10-8 | kg/kg |
| NHWD Non hazardous waste dispose | 0,00108 | kg/kg |
| RWD Radioactive waste disposed | 5,96·10-5 | kg/kg |
| Environmental information describing output flows | ||
| CRU Components for re-use | 0,00 | kg/kg |
| MFR Materials for recycling | 0,00 | kg/kg |
| MER Materials for energy recovery | 0,00 | kg/kg |
| EEE Exported electrical energy | 0,00 | MJ/kg |
| EET Exported thermal energy | 0,00 | MJ/kg |
| Additional environmental impact indicators | ||
| PM Potential incidence of disease due to PM emissions | 5,54·10-9 | Disease incidence/kg |
| IRP Potential Human exposure efficiency relative to U235 | 0,0105 | kgBq U235 eq./kg |
| ETP-fw Potential Comparative Toxic Unit for ecosystems | 2,07 | CTUe/kg |
| HTP-c Potential Comparative Toxic Unit for humans - cancer effects | 6,30·10-11 | CTUh/kg |
| HTP-nc Potential Comparative Toxic Unit for humans - non-cancer effects | 3,29·10-9 | CTUh/kg |
| SQP Potential Soil quality index | 27,1 | 1/kg |
| Environmental Product Declaration (EPD) - MLC sphera A2: | valid until June 13, 2028 | ||
 certificate valid until June 30, 2030 Certificate no.: 1104-1711-097-1 Status: zertifiziert Issuance Guidelines: 1104 |
| declared since: | Sept 7, 2018 | ||
| Amended: | June 3, 2024 | ||
| baubook product index: | 3538 ef | ||
| λequal equivalent thermal conductivity: | 0,084 | W/(m·K) |
|
