Manufacturer
 | GUTEX Holzfaserplattenwerk D-79761 Waldshut-Tiengen Germany |
| Product groups: | Wood-fibre insulation boards | ||

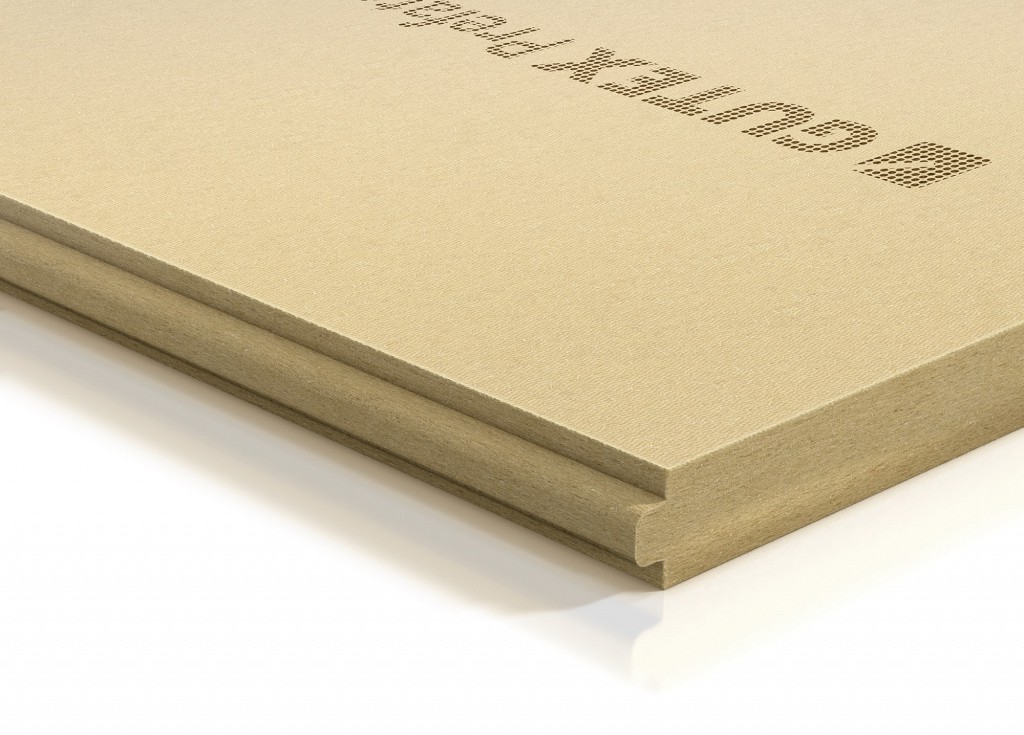

| Product photos: |
| ||
| Renewable raw materials: | 95,2 | w% | |
| Ingredients according to natureplus declaration rules: | wood chips PUR resin paraffin wax | ||
| Country of origin of raw materials (text): | not specified | ||
| Format l x w: | 2.500 mm x 1.200 mm 2.500 mm x 1.180 mm 2.800 mm x 1.200 mm 2.800 mm x 1.180 mm | ||
| thickness: | 4 cm 6 cm | ||
| λr thermal conductivity rated valueAUT: | 0,046 | W/(m·K) | |
| λD thermal conductivity nominal value: | 0,042 | W/(m·K) | |
| λacc. to DIN 4108-4: | 0,044 | W/(m·K) | |
| ρ density: | 180 | kg/m³ | |
| c specific heat capacity: | 2100 | J/(kg·K) | |
| μ Vapour diffusion resistance factor: | 3 |
| Production phase (A1 - A3 according to EN 15804): |  Energy efficient production process Environmental protection and clean production Climate Protection via reduced CO2 emissionsThe compliance with the natureplus guideline values certifies an energy efficient, environmental and climate friendly production process above average. | ||
TVOC ≤ 300 μg/m³ TSVOC ≤ 100 µg/m³ Formaldehyde ≤ 36 µg/m³ Odour assessment ≤ 3 Pesticide ≤ 1 mg/kg AOX / EOX ≤ 1 mg/kg Biocide ≤ 1 mg/kg| A1-A3 Product stage EI disposal indicator |
reference | Unit |
| Core environmental impact indicators | ||
| GWP-fossil Global warming potential - fossil | 0,879 | kg CO2 Äq./kg |
| GWP-biogenic Global warming potential - biogenic | -1,62 | kg CO2 Äq./kg |
| GWP-total Global warming potential - total | -0,741 | kg CO2 Äq./kg |
| ODP Depletion potential of the stratospheric ozone layer | 6,73·10-8 | kg CFC-11 eq./kg |
| AP Acidification potential | 0,00341 | kg SO2 Äq./kg |
| EP Eutrophication potential | 0,00157 | kg PO43- eq./kg |
| POCP Photochemical Ozone Creation Potential | 0,000483 | kg C2H4 eq./kg |
| Indicators describing resource use | ||
| PERE Primary energy renewable - energy resources | 1,85 | MJ/kg |
| PERM Primary energy renewable - material | 16,4 | MJ/kg |
| PERT Primary energy renewable - total | 18,2 | MJ/kg |
| PENRE Primary energy non-renewable - energy resources | 13,2 | MJ/kg |
| PENRM Primary energy non-renewable - material | 1,55 | MJ/kg |
| PENRT Primary energy non-renewable - total | 14,8 | MJ/kg |
| Environmental Product Declaration (EPD) - other: | EPD (1,85 MB) valid until Oct 8, 2025 | ||
 certificate valid until Apr 30, 2024 Certificate no.: 0104-0604-012-2 Status: zertifiziert Issuance Guidelines: 0104 |
 PDF (181 KB) valid until February 2028 |
| Technical data sheet: | 1403_GUTEX_Prefatop_TDB_de.pdf (480 KB) issued on June 1, 2023 | ||
| Safety data sheet: | issued on May 23, 2022 | ||
| CE Declaration of Performance: | issued on Aug 11, 2023 | ||
| Listed since: | July 31, 2019 | ||
| Amended: | Dec 20, 2023 | ||
| baubook product index: | 1524 bf | ||
|
