| Product groups: | Ceiling elements made of wood, Cross laminated timber | ||
| Description of the area of application: | LIGNO® Block is a load-bearing, multi-layered bonded panel element with a visible surface, typically designed to be acoustically effective. It is primarily used in timber roof constructions and is especially well-suited for buildings with acoustic performance requirements, such as schools, daycare centers, offices, assembly halls, or administrative buildings. Thanks to its internal structure of cross-laminated layers, the element offers high dimensional stability and robustness. | ||
| Product description of manufacturer: | LIGNO® Block is a material-efficient cross-laminated timber box element for roof structures that combines load-bearing capacity with interior design quality. It is made up of multiple layers of solid wood, bonded crosswise for strength and stability. The visible underside is factory-finished either as a smooth wood surface or—more commonly—with finely profiled slats backed by an absorber, delivering effective sound absorption for improved room acoustics. This makes LIGNO® Block particularly suitable for schools, daycare centers, halls, offices, and event spaces. The product is also ideal for areas with high structural loads and large spans. It can be configured to meet demanding fire and sound insulation requirements, contributing to both safety and comfort within the building. | ||

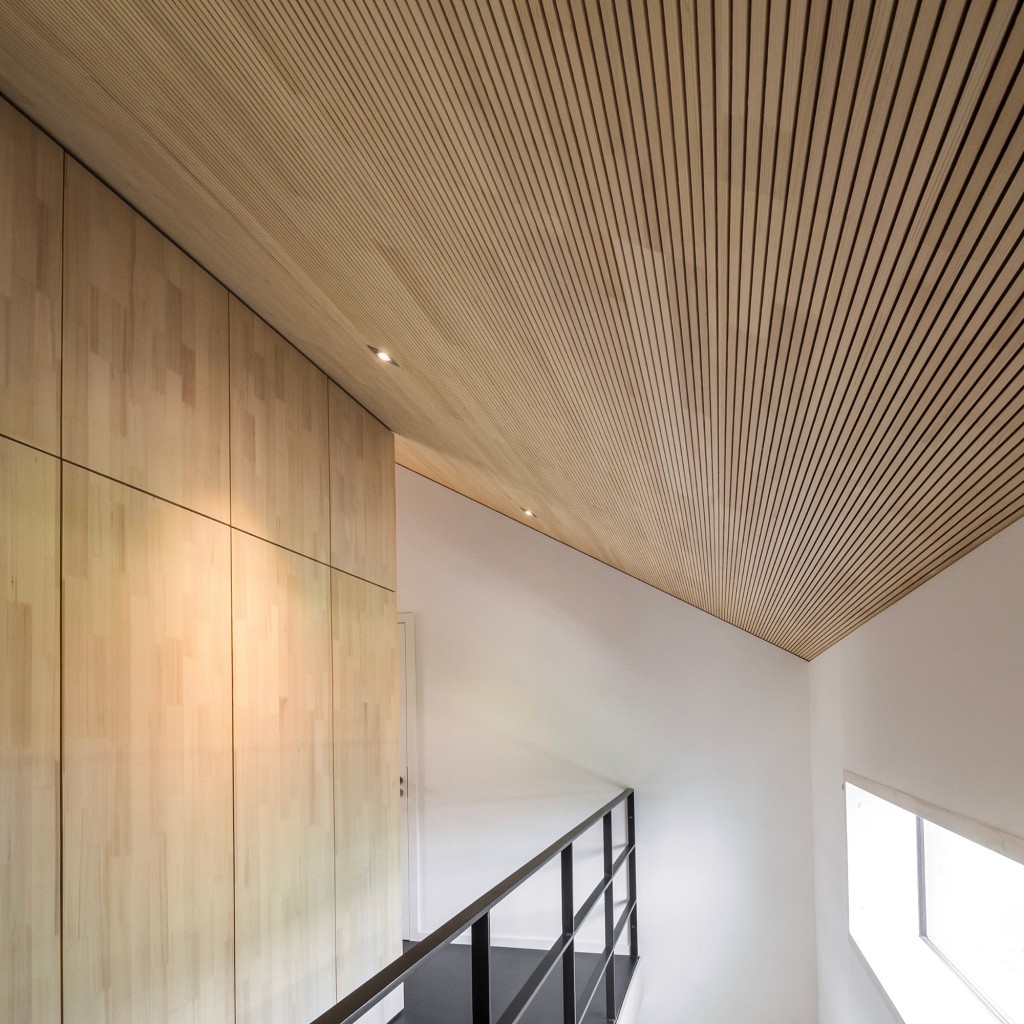

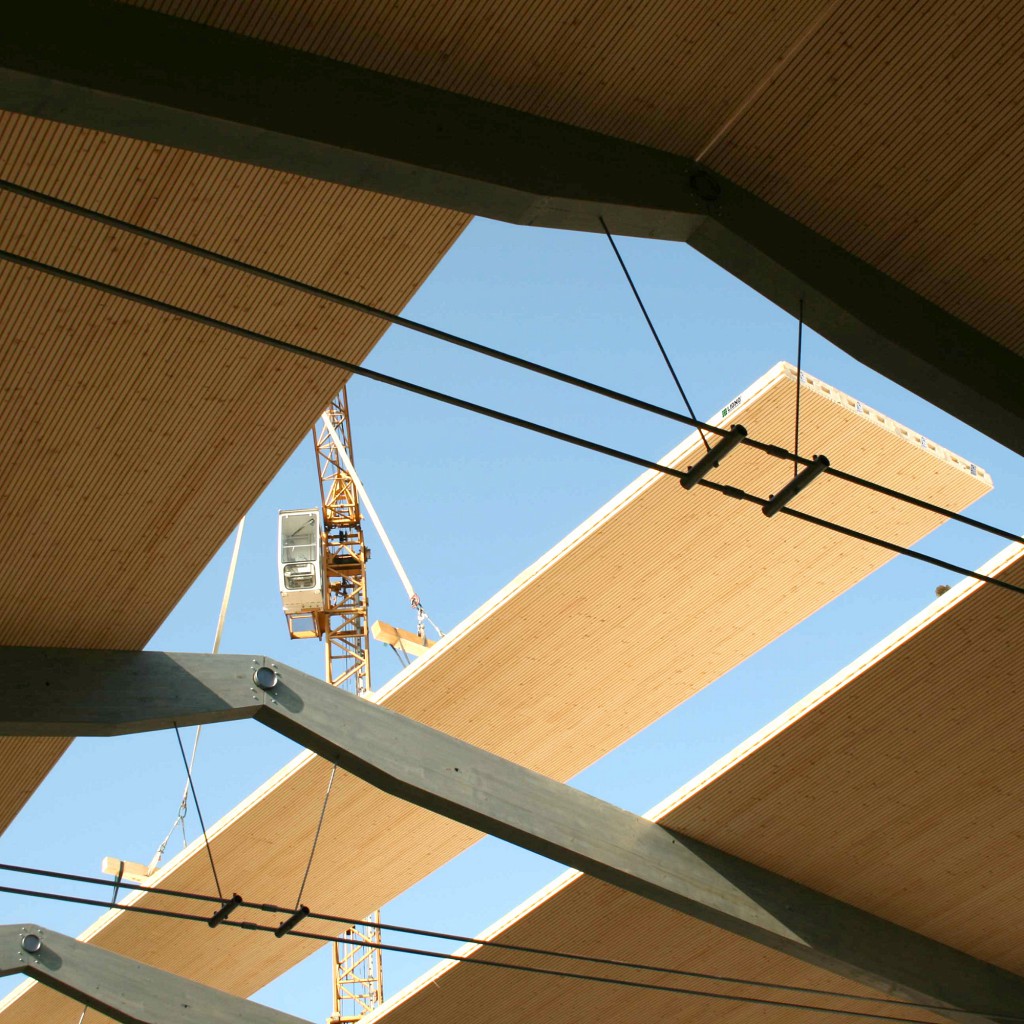

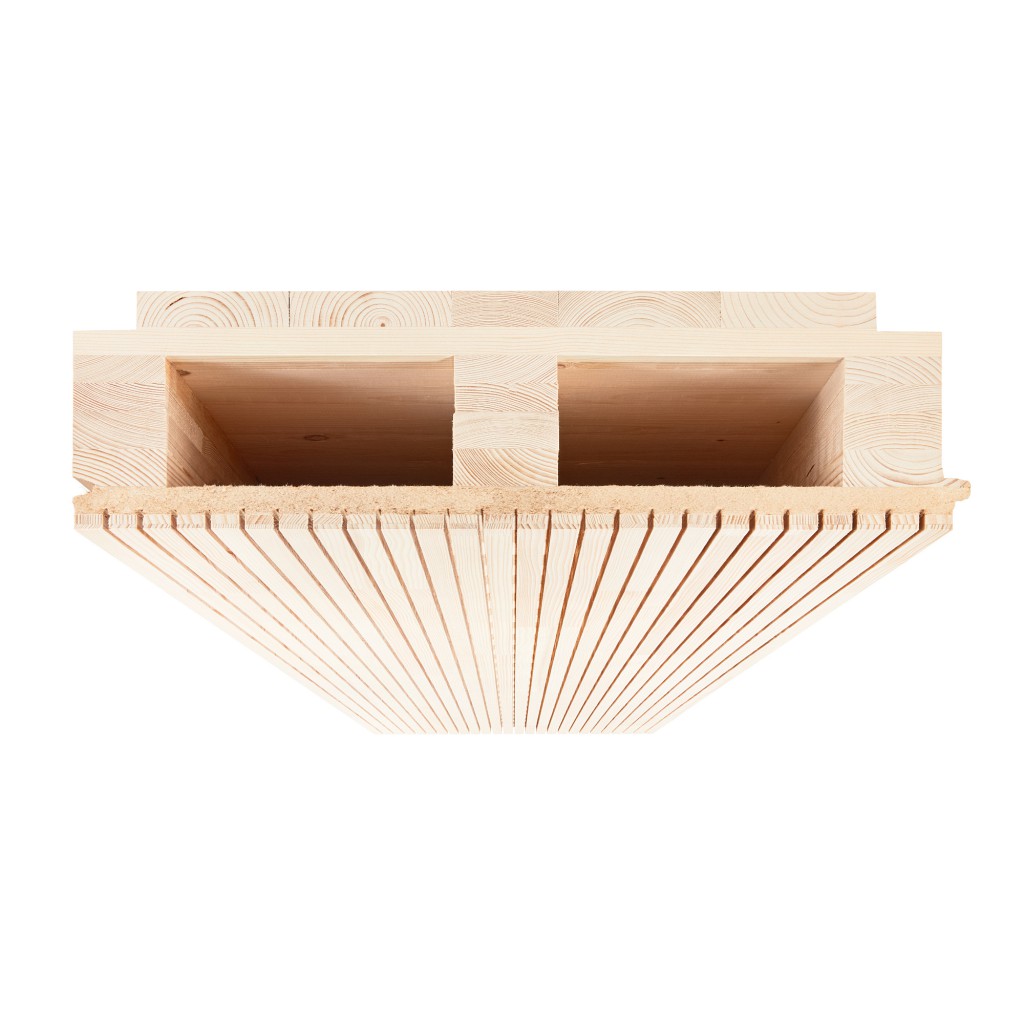

| Product photos: |
| ||
| Ingredients according to natureplus declaration rules: | solid wood solid wood board wood fibre board glue | ||
| Designation of origin of the main ingredients: | PEFC-certified softwood (spruce, fir) from the Black Forest and southern Germany. Solid wood panels preferably from regional or European sources, all from controlled supply chains. Wood fiberboards made from residual and fresh wood supplied by local manufacturers. Low-emission PU adhesives are used in accordance with natureplus requirements. | ||
| Link to product on the manufacturer's homepage: | https://lignotrend.com/produkte/konstruktion/dachbauteile | ||
| Format l x w: | 12.000 mm x 625 mm | ||
| thickness: | 15 cm 17 cm 19 cm 21 cm 23 cm 25 cm 27 cm 29 cm 31 cm 33 cm 35 cm 37 cm 39 cm 41 cm 45 cm | ||
| Dimensions (description): | LIGNO® Block ist in Längen bis 12.000mm, einer Standardbreite von 625mm und Dicken von 15 bis 45cm (in 2-cm-Schritten) erhältlich. Durch werkseitige Vorelementierung können bis zu vier Einzelelemente zu größeren Modulen kombiniert werden. Der hohe Vorelementierungsgrad sorgt für eine deutlich reduzierte Montagezeit auf der Baustelle. | ||

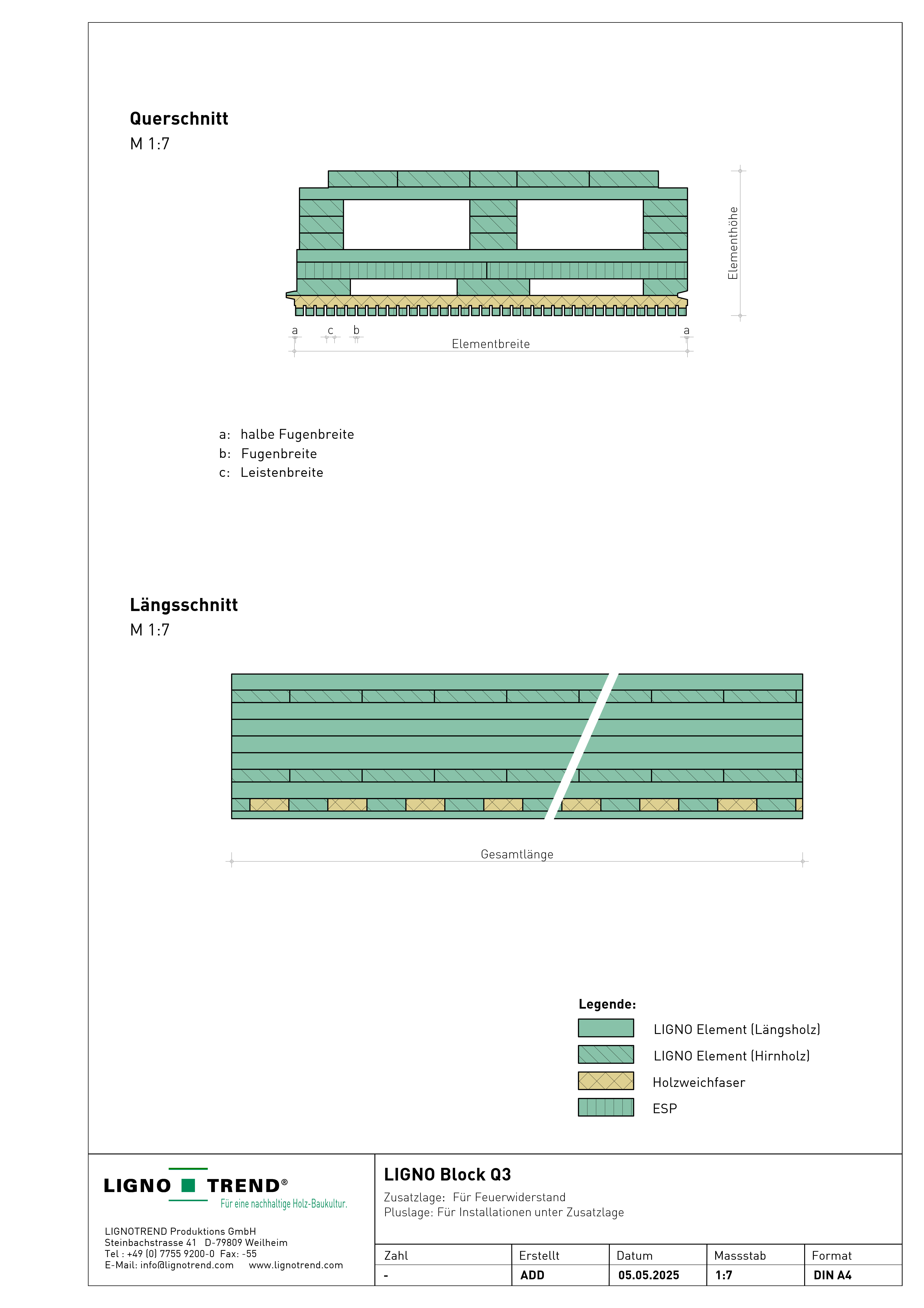

| Construction drawing with dimensions: | LIGNO_Block_Q3.jpg (701 KB) | ||
| λr thermal conductivity rated valueAUT: | not specified | W/(m·K) | |
| λacc. to DIN 4108-4: | 0,12 | W/(m·K) | |
| ρ density: | 385 | kg/m³ | |
| c specific heat capacity: | 1600 | J/(kg·K) |
| Flammability class: | not specified | ||
| Compliance with minimum EN requirements: | LIGNO® Block erfüllt die Mindestanforderungen an die Tragfähigkeit und Gebrauchstauglichkeit gemäß EN 1995-1-1. Es bietet ein sicheres Trag-, Verformungs- und Schwingungsverhalten bei Decken und Dächer. Je nach Querschnitt sind Feuerwiderstandsklassen REI 30 bis REI 90 gemäß DIN EN 13501-2 erreichbar. Der Feuerwiderstand kann in der Regel ohne zusätzliche Bekleidung nachgewiesen werden. | ||
| Production phase (A1 - A3 according to EN 15804): |  Energy efficient production process Environmental protection and clean production Climate Protection via reduced CO2 emissions | ||
Pesticide ≤ 1 mg/kg Biocide ≤ 1 mg/kg AOX / EOX ≤ 1 mg/kg TVOC ≤ 1000 μg/m³ TSVOC ≤ 100 µg/m³ Formaldehyde ≤ 36 µg/m³ Odour assessment ≤ 3 certificate valid until June 30, 2029 Certificate no.: 0211-0606-014-1 Status: zertifiziert Issuance Guidelines: 0211 |
 PDF (339 KB) valid until June 2027 |
| Technical data sheet: | 2024_03_26_TD_LIGNO_Block_x_DE_k.pdf (3,31 MB) issued on Mar 26, 2024 | ||
| General Technical Approval (Germany): | valid until Feb 11, 2030 Registration number: Z-9.1-555 | ||
| declared since: | Jan 15, 2015 | ||
| Amended: | June 6, 2025 | ||
| baubook product index: | 9392 ad | ||
|
